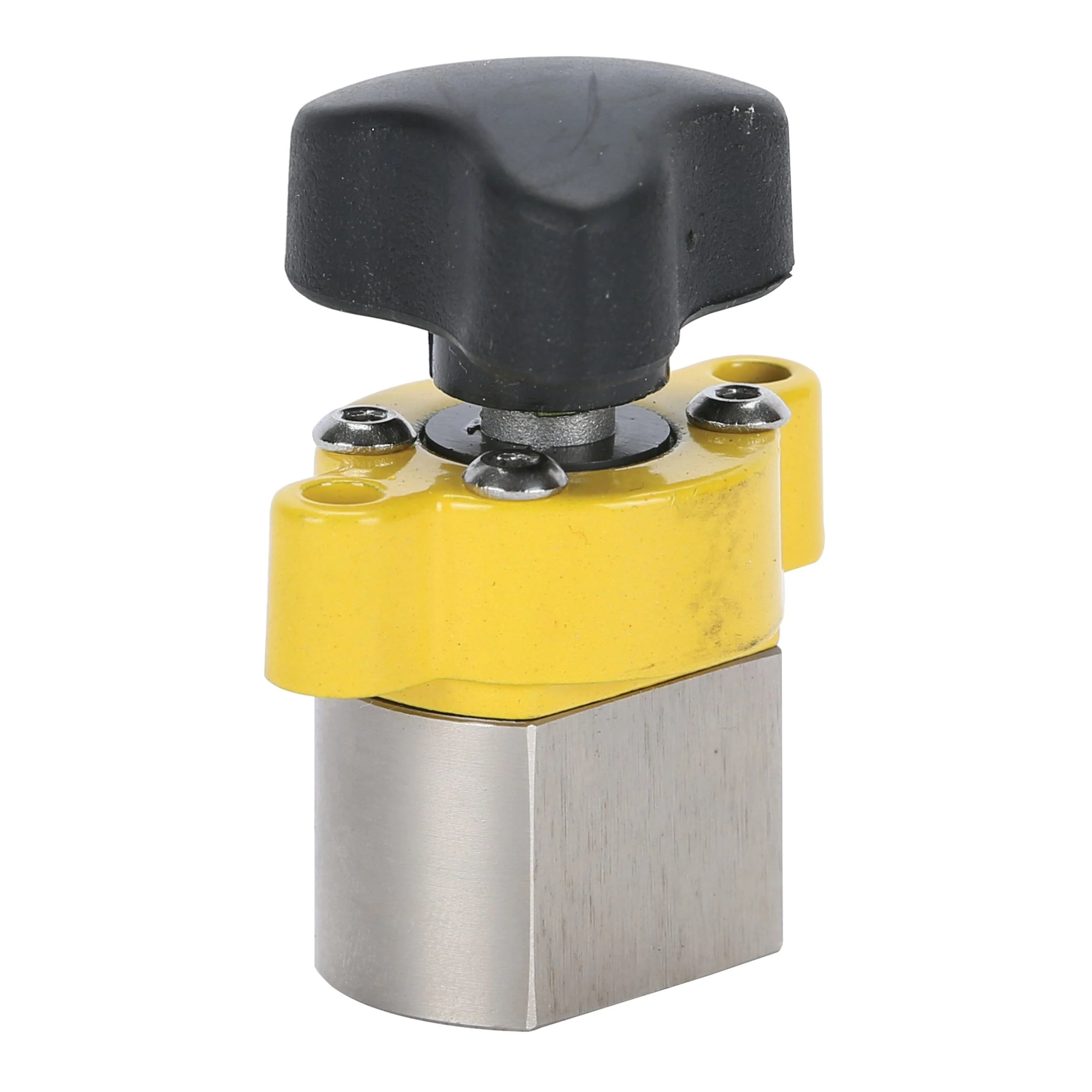

Magswitch makes the ultimate work-holding clamp. Get instant holding force with a simple 180° turn of a knob! Avoid the hassles of creative clamping while trying to secure jigs on a work table. MagJig gives you flexibility to mount anywhere on a steel surface, such as your table saw, jointer, shaper, bandsaw, drill press, or stationary sander. Make your own custom jigs and fixtures using MagJigs by drilling standard 3/4" stock. Recommend two or more MagJigs per jig or fixture to avoid pivoting.
Features:
- Fast, strong setup anywhere on a steel or cast-iron table or fence
- Simple ON/OFF magnet with 180° turn of a knob
- Applies a 60-lb. breakaway force against any surface made of steel
- Install in 3/4" material using 25mm forstner bit (sold separately)
- Recommend two or more MagJigs per jig or fixture
Specifications:
- Max Breakaway: 55 lbs (24.9 kg)
- 2:1 Shear Working Load: 6 lbs (2.7 kg)
- Product Weight: 0.2 lb (0.1 kg)
- Dimensions: 1.6 x 1.1 x 1.7 in (152.4 x 27.9 x 43.1 mm)
- Magnetic Pole Footprint: 56 mm x 16 mm
