8" Benchtop Jointer with Oliver HCX Helical Cutterhead
HomeStore

8" Benchtop Jointer with Oliver HCX Helical Cutterhead

8" Benchtop Jointer with Oliver HCX Helical Cutterhead

The Oliver Machinery 10080 8" Benchtop Jointer delivers full‑size jointer capability in a footprint that fits smaller shops. Designed for woodworkers who need accurate edge and face jointing without dedicating floor space, this machine combines cast‑iron mass, a true helical cutterhead and extended table support in a compact format.

The parallelogram‑style cast‑iron tables and fence provide consistent alignment across the cutting range while adding the weight needed to control vibration on a benchtop machine. Folding extension wings increase overall table length to support longer stock, then stow when space is limited. The Oliver HCX helical cutterhead uses 21 carbide inserts arranged in three rows to maintain cut quality across the full 8" width while reducing tearout and cutter maintenance compared to straight knives.

A 2 HP 115V universal motor drives the cutterhead at 11,000 RPM, supplying the power needed for hardwoods without requiring special electrical service. An integrated chip extractor fan assists dust collection by actively moving chips toward the 2.5" port, keeping the cutterhead area clearer during operation. Included setup and maintenance accessories allow the machine to be put to work immediately.

Features:

  • 8" jointing capacity in a benchtop configuration
  • Oliver HCX helical cutterhead with 21 carbide inserts
  • Parallelogram cast‑iron infeed and outfeed tables
  • Precision ground cast‑iron fence
  • Folding extension wings for added stock support
  • 2 HP 115V universal motor
  • Built‑in chip extractor fan for improved dust evacuation
  • Includes extra inserts and screws, T‑wrench and push blocks

Specifications:

  • Cutterhead Speed: 11,000 RPM
  • Maximum Stock Width: 8"
  • Maximum Depth of Cut: 1/8"
  • Motor Output: 2 HP
  • Motor Phase: 1 Ph
  • Voltage: 115 V
  • Dust Port Diameter: 2.5"
  • Cutterhead Type: Helical with Carbide Inserts
  • Number of Inserts: 21
  • Table Material: Precision Ground Cast Iron
  • Fence Material: Precision Ground Cast Iron
  • Main Table Length: 40"
  • Table Length with Extension Wings: 55 7/8"

What’s Included:

  • (1) Set of extra carbide inserts and mounting screws
  • (1) T‑wrench
  • (1) Set of push blocks

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5 business days, unless the item is on backorder.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Returns are accepted by Oliver Machinery within 30 days of receipt. Return Materials Authorization (RMA) required prior to return. A 20% restocking fee will be applied. Customer responsible for return freight. Contact Woodcraft Customer Service for return assistance at 1-800-225-1153.

Warranty Information

Oliver Machinery warrants its products to the original customer as free from defects for a period of two years on parts and 1 year for the electronics and motor.
$360.00

Original: $1,199.99

-70%
8" Benchtop Jointer with Oliver HCX Helical Cutterhead—

$1,199.99

$360.00

More Images

8" Benchtop Jointer with Oliver HCX Helical Cutterhead - Image 2
8" Benchtop Jointer with Oliver HCX Helical Cutterhead - Image 3

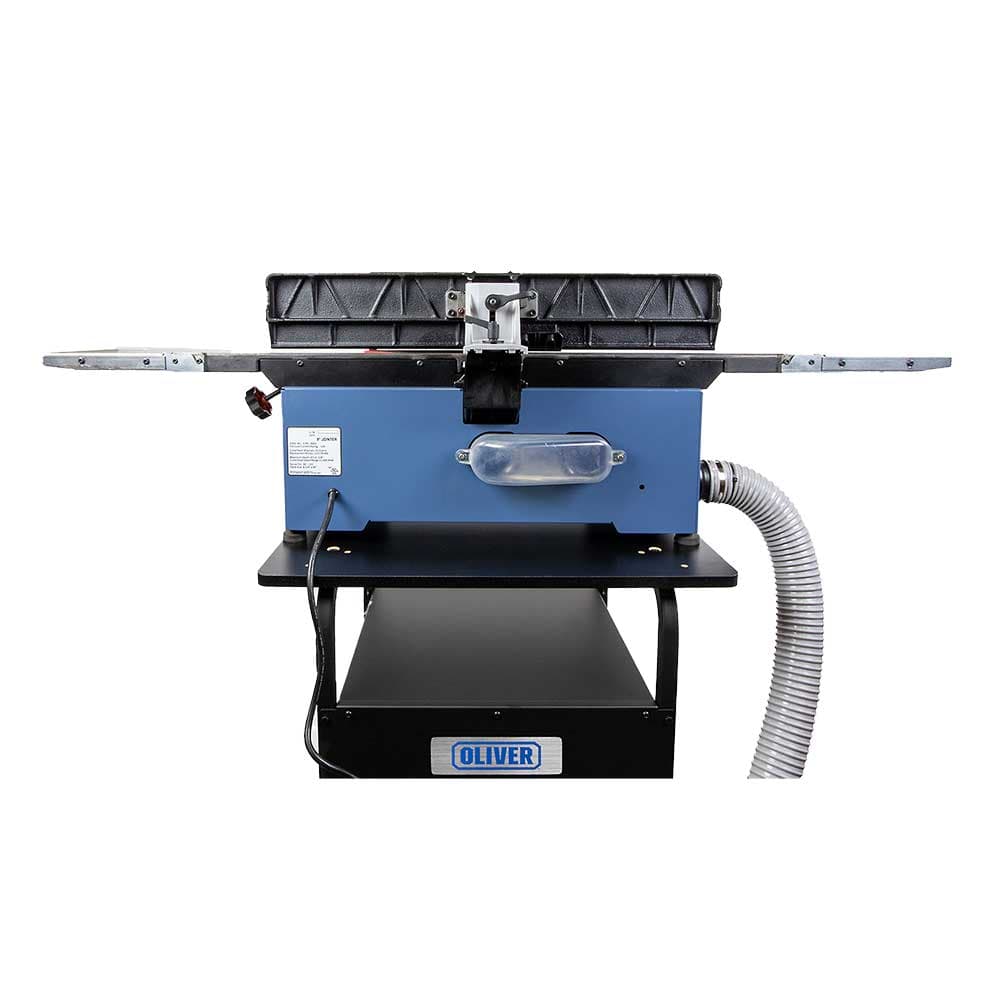

8" Benchtop Jointer with Oliver HCX Helical Cutterhead - Image 4
