209BHH PLNR 5HP 1PH 230V
The Powermatic 209BHH Planer PM1-478 is a 20 inch wood planer built for shops that need greater capacity and consistent performance across wide stock. A 5 HP motor running on 230V single phase power delivers the strength required to maintain feed rate through dense hardwoods without slowing under load.
A four row helical cutterhead with 68 four sided carbide inserts rotates at 5,200 RPM to produce a refined surface with reduced tearout. Insert rotation extends usable life and limits the need for frequent changeouts. Dual feed speeds of 16 and 28 FPM let you shift between heavy material removal and controlled finish passes without changing setups. This gives more flexibility at the machine when stock varies from rough to near final thickness.
The extended 51-1/2 inch cast iron table supports longer boards and reduces movement during the cut which improves consistency across the full 20 inch width. The digital readout makes it possible to return to exact thickness settings without repeated test passes. A 4 inch dust port designed for 900 CFM keeps chips moving to maintain cutterhead efficiency and reduce buildup during extended runs.
This helical cutterhead planer is suited for woodworkers who need wider capacity and stable output across larger workpieces while maintaining control over finish quality.
Features:

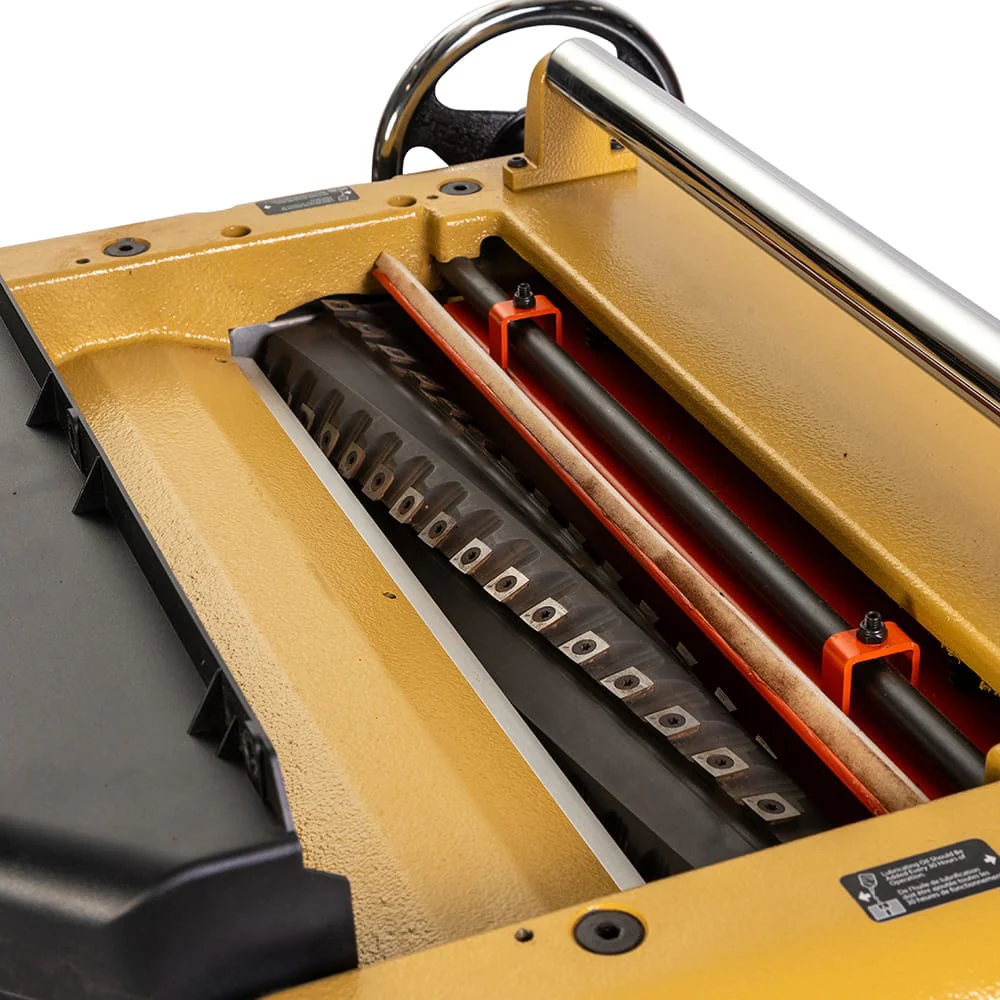

- Four row helical cutterhead with 68 four sided inserts
- Two speed feed rate for material removal and finish passes

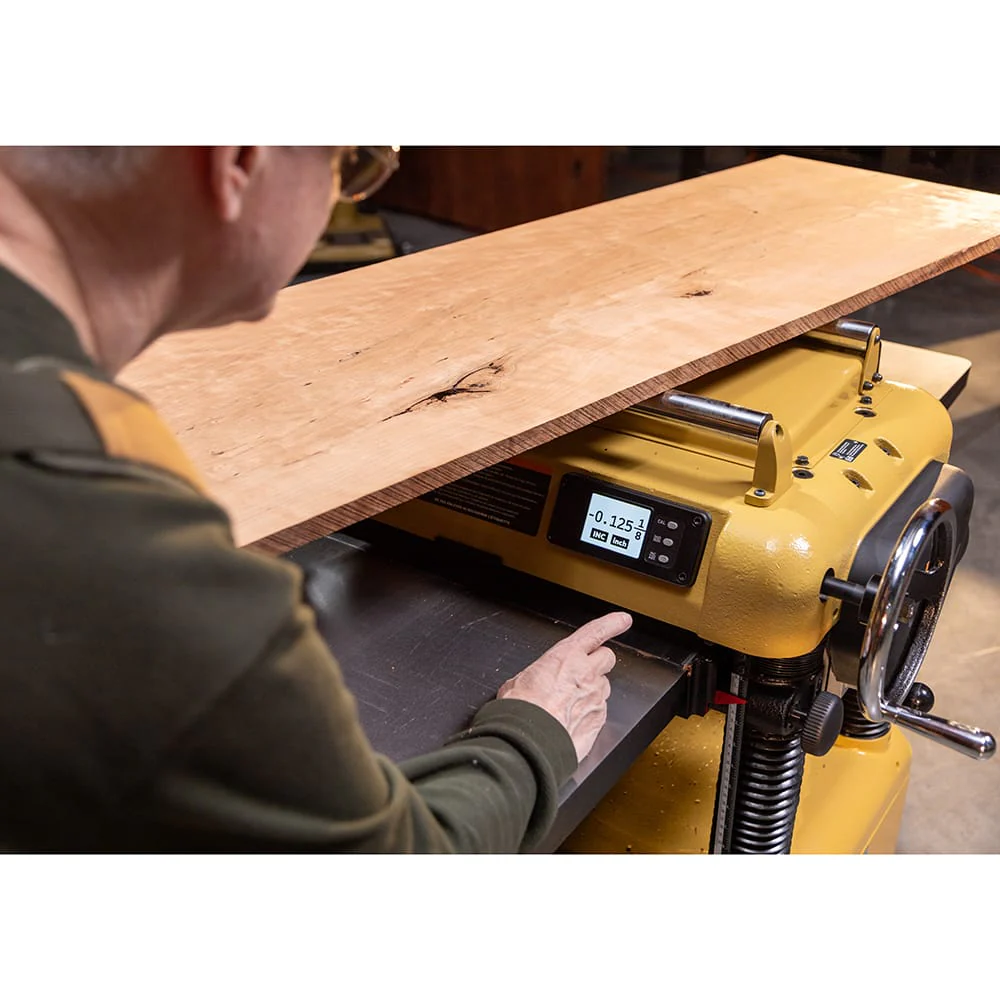

- Digital readout for repeatable thickness settings
- Cast iron infeed and outfeed tables for stability
- Cutterhead access for insert rotation and replacement
- 4" bi directional dust port for chip control

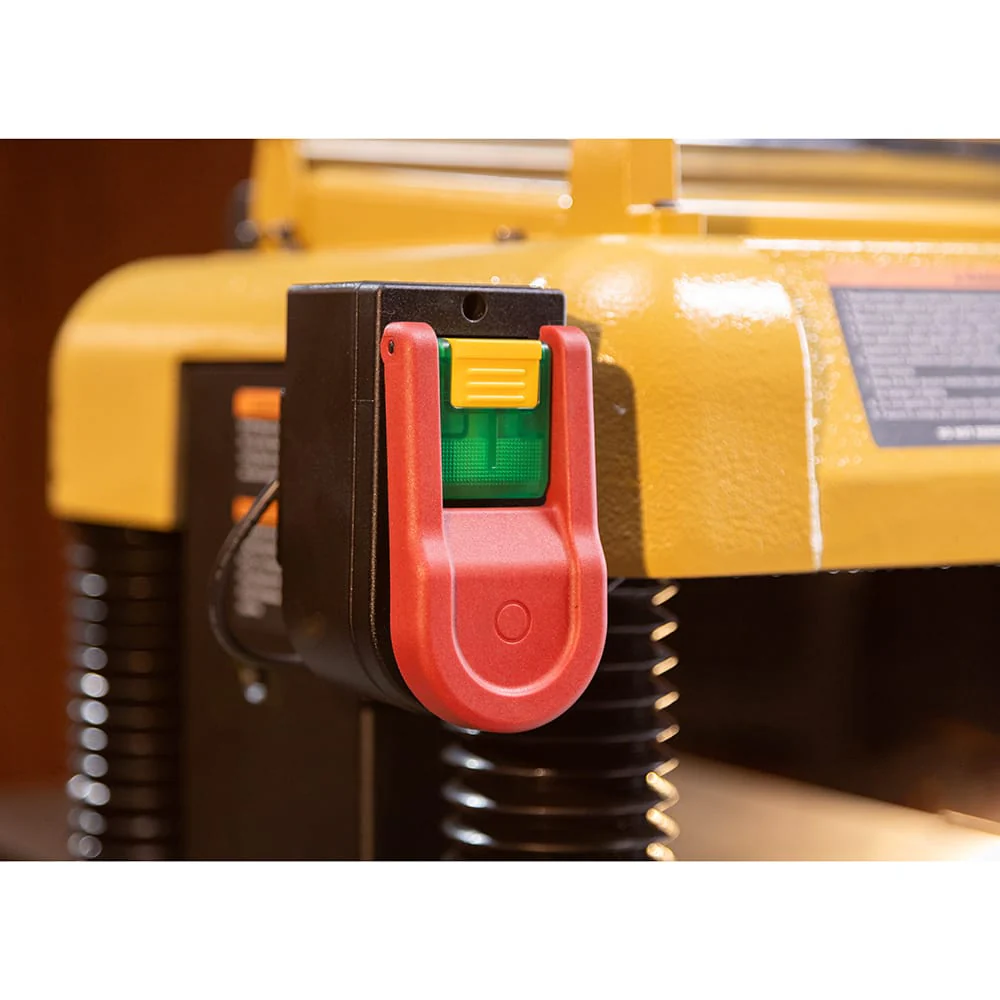

- Oversized emergency stop for quick shutdown
- Height adjustment handle for controlled table movement
- Caster locking and braking system for mobility and stability
- Dual lifting handles for repositioning
Specifications:
- Model: 209BHH
- Stock Number: PM1-478
- Warranty: 5 Years
- Motor Power: 5 HP
- Phase: 1 PH
- Voltage: 230V
- Recommended Circuit Size: 40 A
- Max Cutting Width: 20"
- Max Cutting Thickness: 8"
- Min Cutting Thickness: 1/8"
- Full Width Cutting Depth: 3/32"
- Min Planing Length: 8"
- Cutterhead Type: 4 Rows, 68 Inserts
- Insert Size: 0.59" x 0.59" x 0.10"
- Cutterhead Speed: 5,200 RPM
- Cutterhead Diameter: 3-7/32"
- Minimum CFM Required: 900 CFM
- Feed Rate: 16/28 FPM
- Main Table Size: 21-1/2" x 20"
- Full Table Size: 51-1/2" x 20"
- Dust Port Diameter: 4"
- Overall Dimensions: 51-1/2" x 37-3/8" x 43-3/8"
- Packaging Dimensions: 37-5/8" x 29-23/32" x 50-3/16"
- Net Weight: 606 lb
- Shipping Weight: 704 lb
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.
Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 4 -7 approximately business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
Warranty Information
Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft.
$6,299.99
