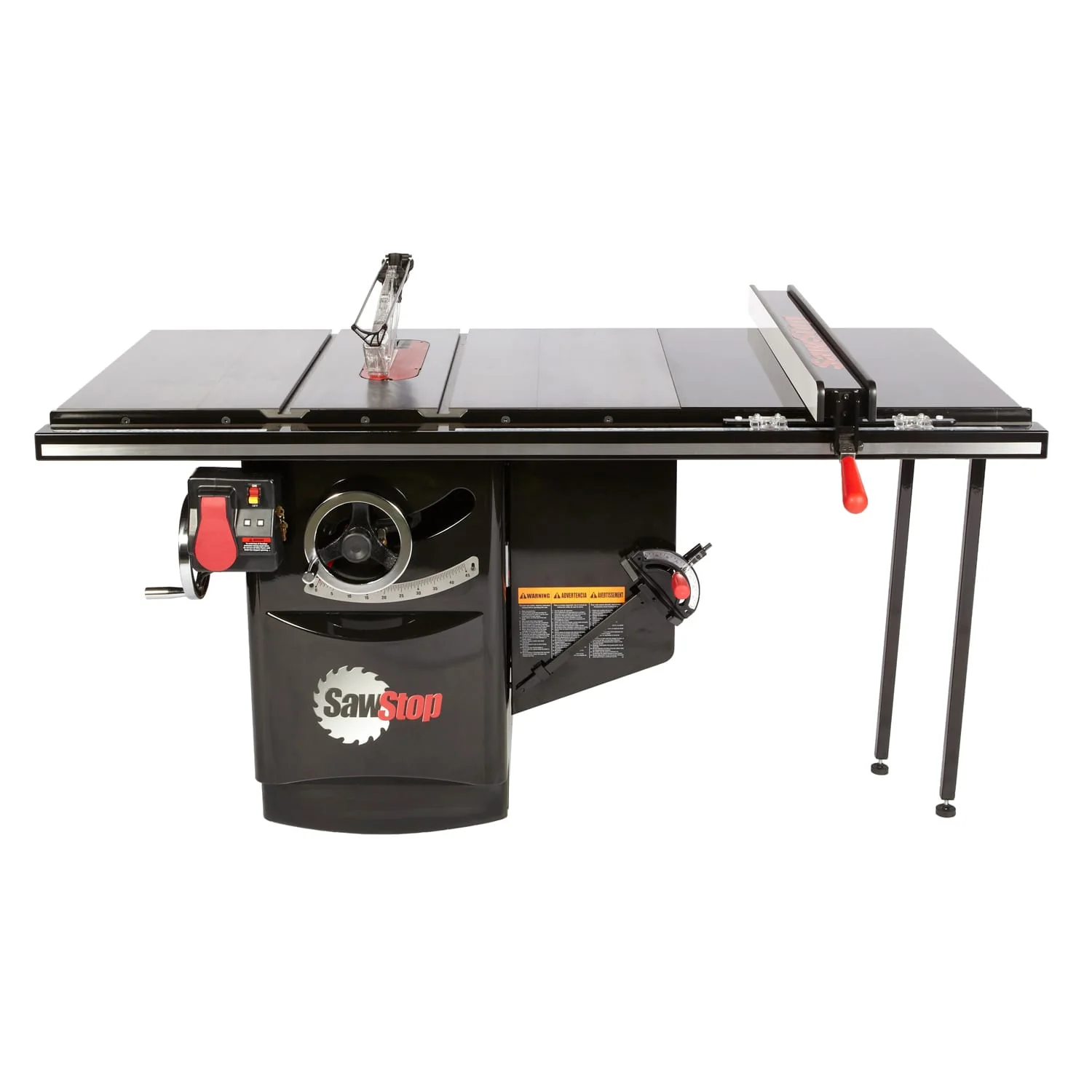

Industrial Cabinet Saw with 36" Industrial T-Glide Fence System - 5HP - 3PH - 230V

Features:

• SawStop’s patented safety system
  Riving knife reduces the risk of kickback
• Tool-free quick-change blade guard mount
  Diagnostic system ensures the saw is ready to respond
• Dust-Collection Blade Guard
  36" Industrial T-Glide Fence System
• 5 HP motor 3-phase, 230V 60 HZ

Specifications:

• Overall saw dimensions: 69-1/4" wide x 36-1/2" deep x 34" high
• Cabinet footprint: 20" x 25"
• Cast-iron table: 24" w x 30" d
• Cast-iron table size with extension wings: 44" w x 30" d
• Motor: 5 HP, 3-Phase, 230V 60 HZ
• Weight: 635 lbs.
• Blade: 60-tooth, professional grade, 5/8" arbor
• Blade diameter: 10"
• Blade tilt: left
• Blade kerf: 0.118" (3mm)
• Blade plate thickness: 0.078"
• Max. depth of cut, blade at 0º: 3-1/8"
• Max. depth of cut, blade at 45º: 2-1/4"
• Max. rip, left of blade: 12-1/2"
• Dado diameter: 8" (requires a separate brake cartridge and table insert)
• Dado max. width: 13/16"
• Arbor diameter at blade: 5/8"
• Table in front of blade (max. elevation): 11"
• Table behind blade (max. elevation): 9-3/4"
• Table flatness measured diagonally: 0.010" maximum gap
• Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
• Dust-collection port diameter: 4"
• Riving knife/splitter thickness: 0.090" (2.3mm)
• Insert: zero clearance, phenolic core, melamine surfaces
• Belts: 2 V-ribbed belts

What's Included:

• (1) SawStop Industrial Cabinet Saw with 36" Industrial T-Glide Fence System - 5HP - 3PH - 230V
